Spherical Copper Powder > Copper Spherical Powder (CUSP70)

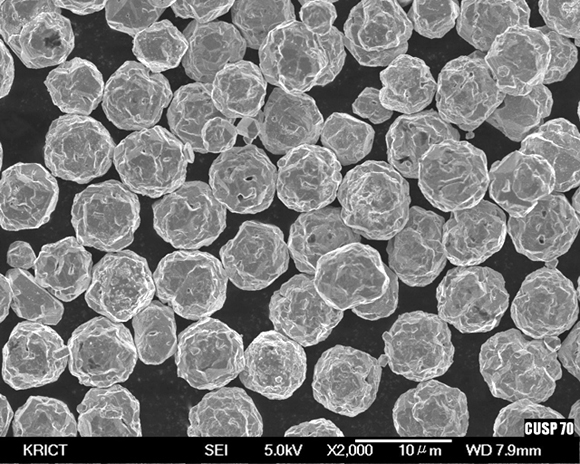

Mean Particle Size(SEM)  7.0 ㎛

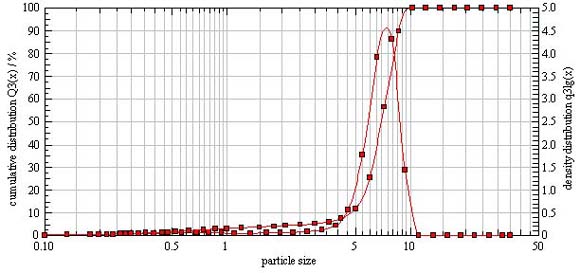

Particle Size Distribution D10 : 4.8㎛  D50 : 6.8~7.5㎛  D90 : 8.7㎛
Target Properties Tap Density : 4.8g/㎤  BET : 0.25 ㎡/g
  Oxygen (wt%) max. : 0.25
Carbon (wt%) max. : 0.05
Sulphur (wt%) max. : 0.01
Application MLCC termination paste. Thick film hybrid paste. Conductive adhesive.
