Spherical Copper Powder > Copper Spherical Powder (CUSP55)

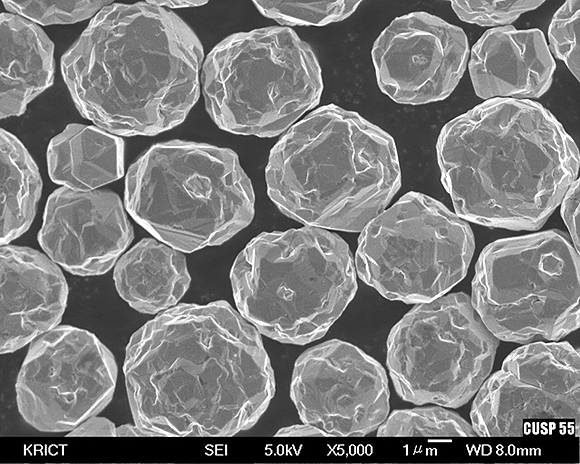

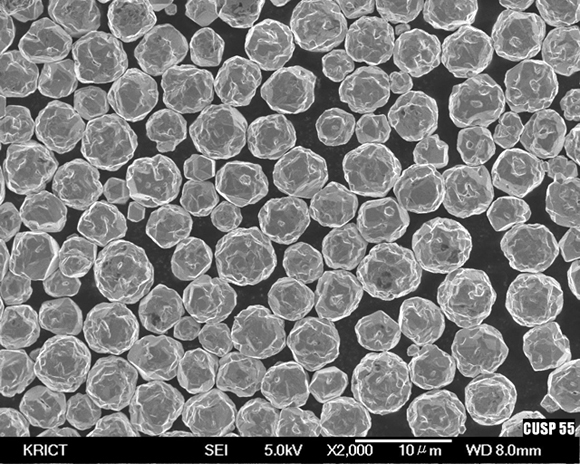

Mean Particle Size(SEM)  5.5 ㎛

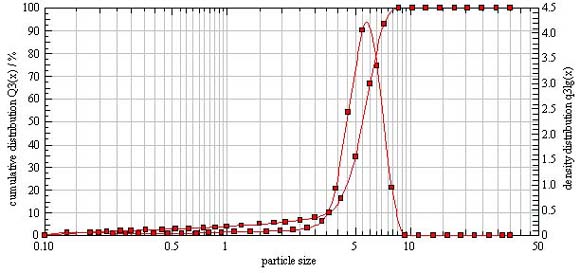

Particle Size Distribution D10 : 4.0㎛  D50 : 5.3~5.8㎛  D90 : 7.2㎛
Target Properties Tap Density : 4.8g/㎤  BET : 0.30 ㎡/g
  Oxygen (wt%) max. : 0.25
Carbon (wt%) max. : 0.05
Sulphur (wt%) max. : 0.01
Application MLCC termination paste. Thick film hybrid paste. Conductive adhesive.
