Spherical Copper Powder > Copper Spherical Powder (CUSP20)

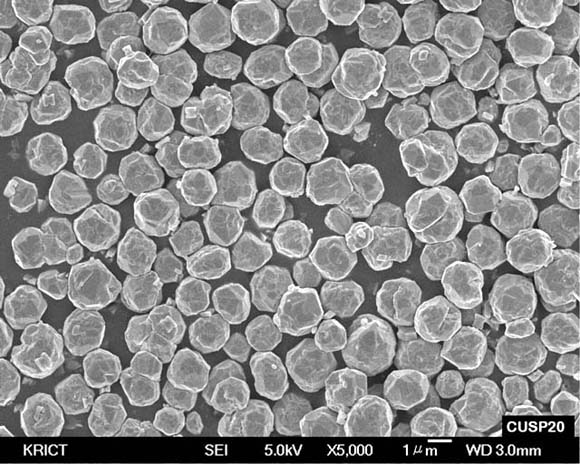

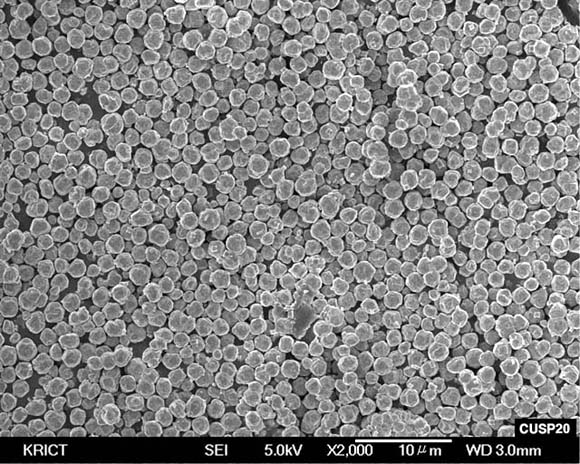

Mean Particle Size(SEM)  2.0 ㎛

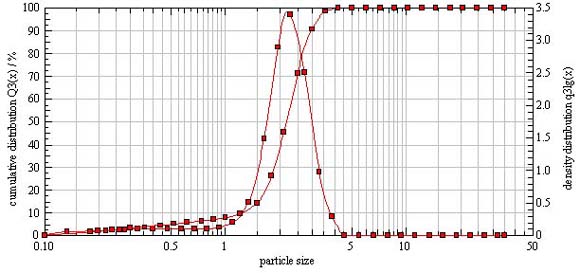

Particle Size Distribution D10 : 1.0㎛  D50 : 2.0~2.4㎛  D90 : 3.0㎛
Target Properties Tap Density : 4.4 g/㎤  BET : 0.55 ㎡/g
  Oxygen (wt%) max. : 0.30
Carbon (wt%) max. : 0.05
Sulphur (wt%) max. : 0.01
Application MLCC termination paste. Thick film hybrid paste. Conductive adhesive.
